Special Projects

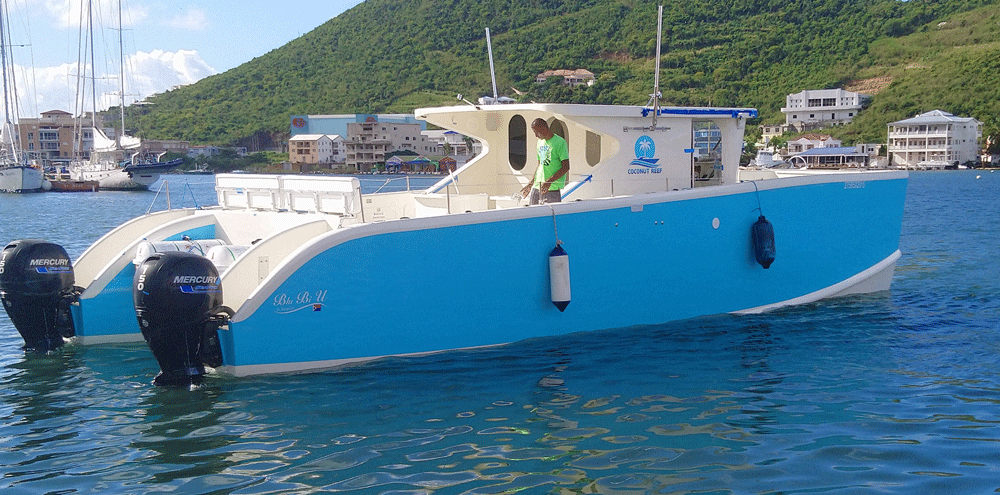

Dive 42' Catamaran

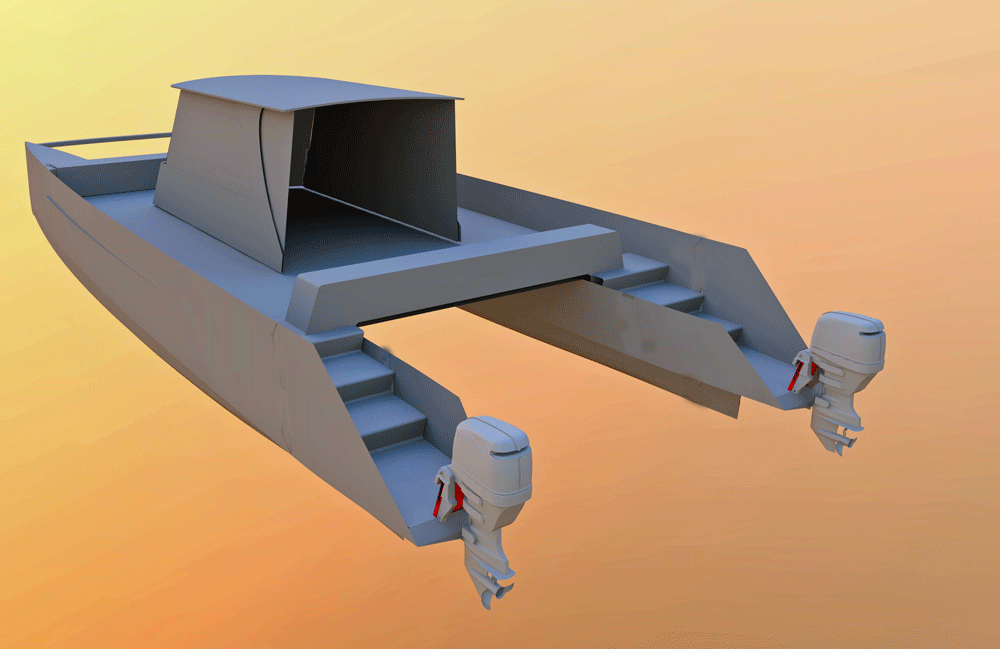

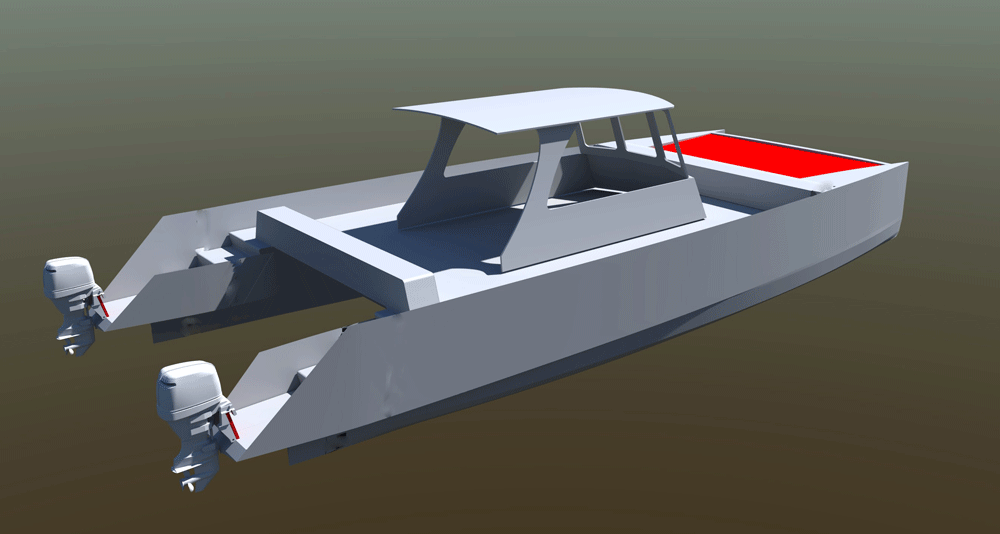

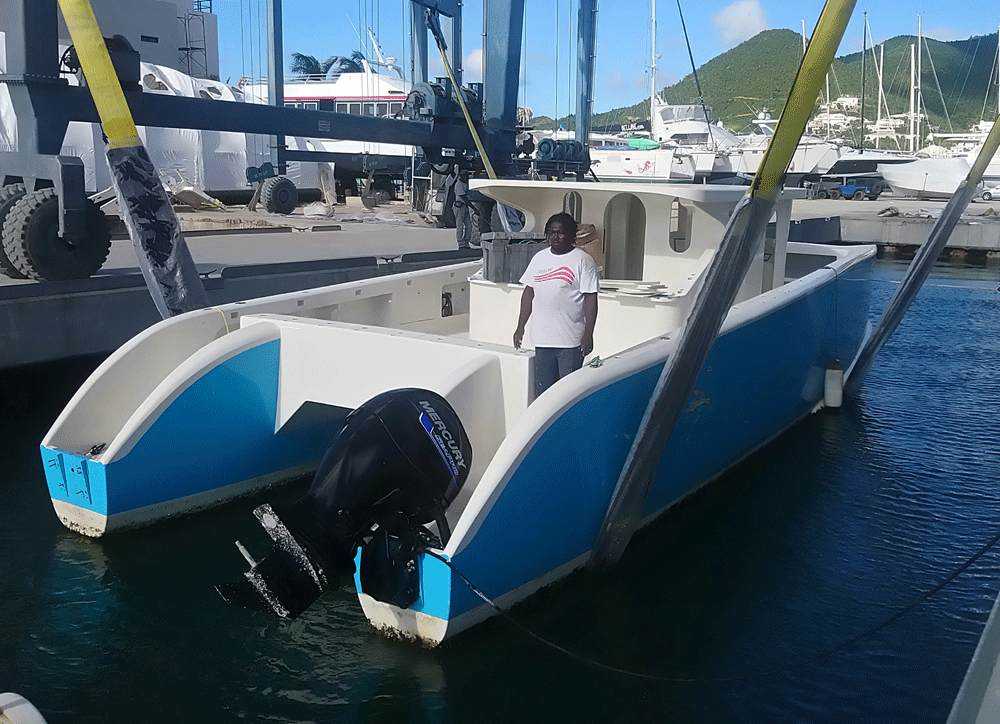

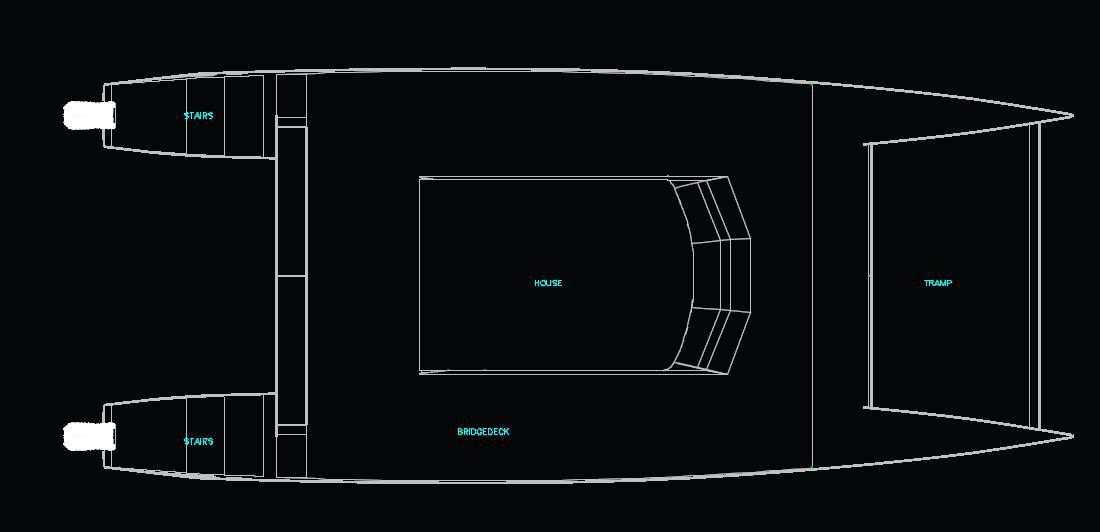

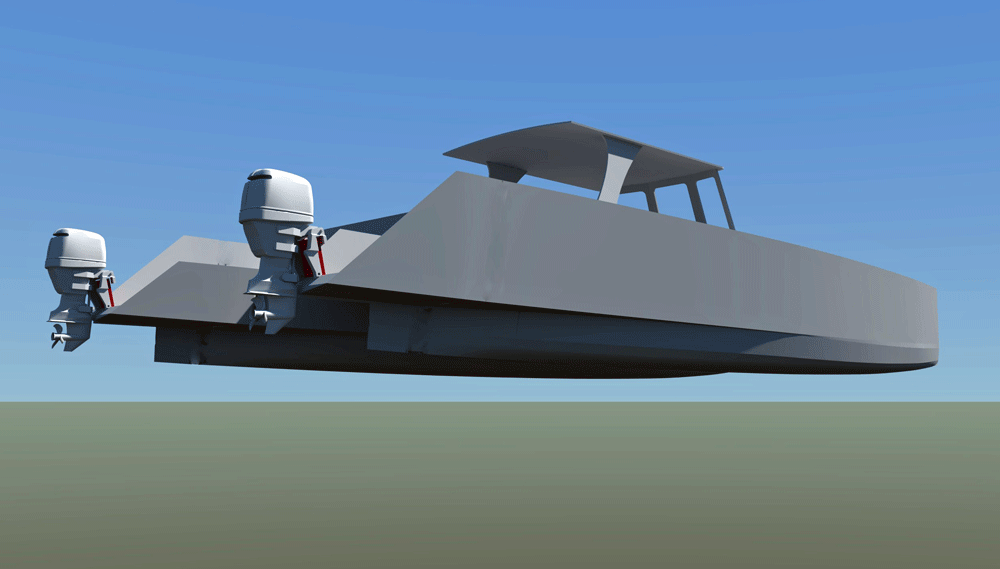

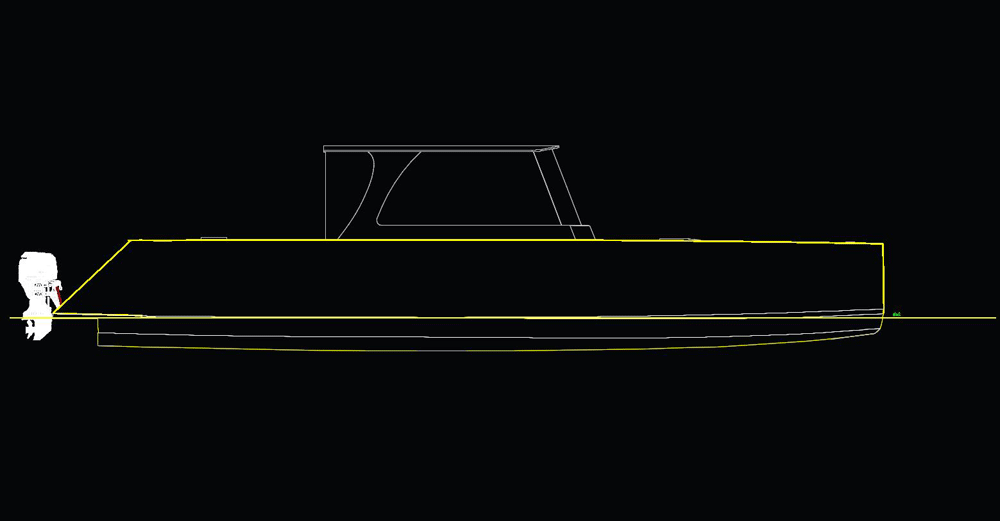

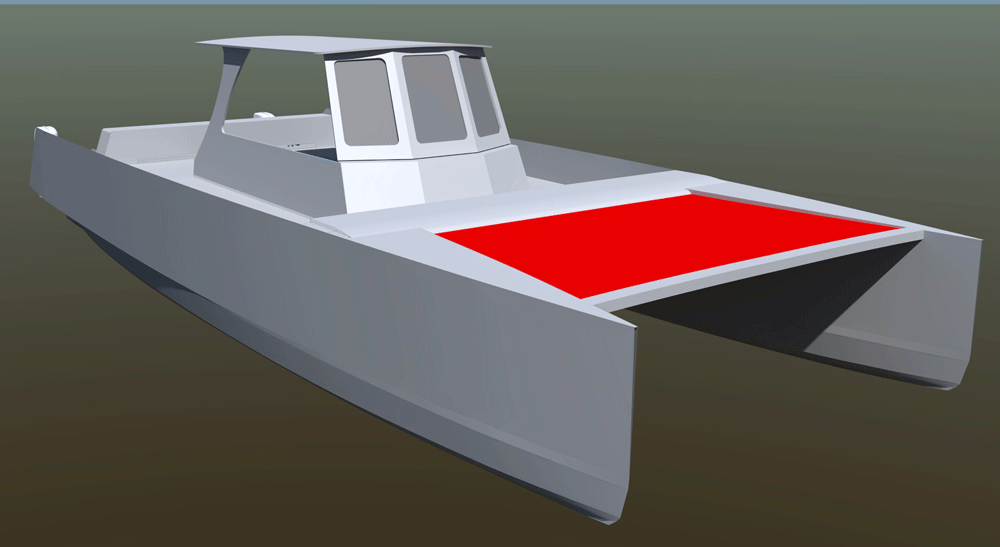

A 42' dive charter catamaran in rapid composite construction.

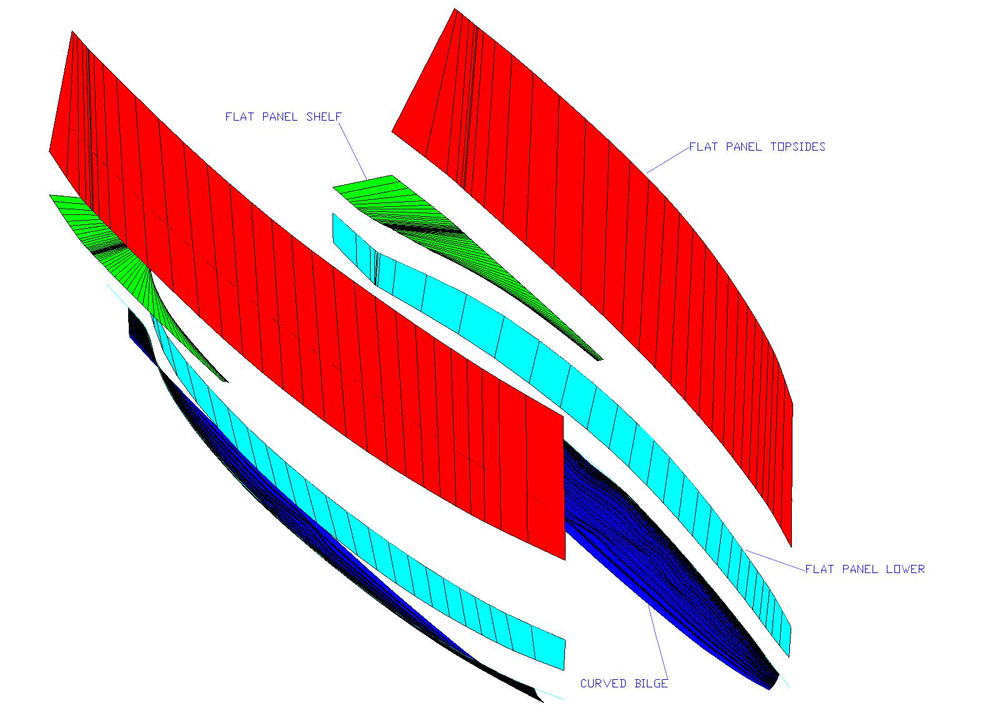

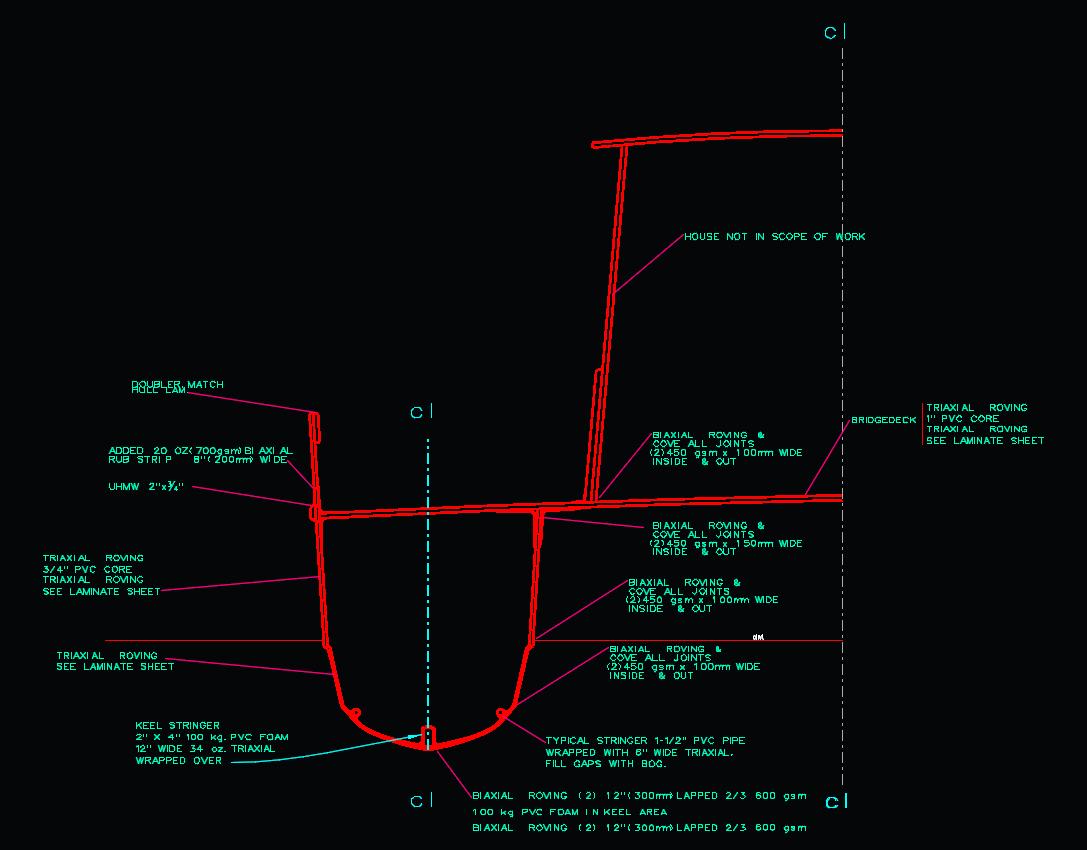

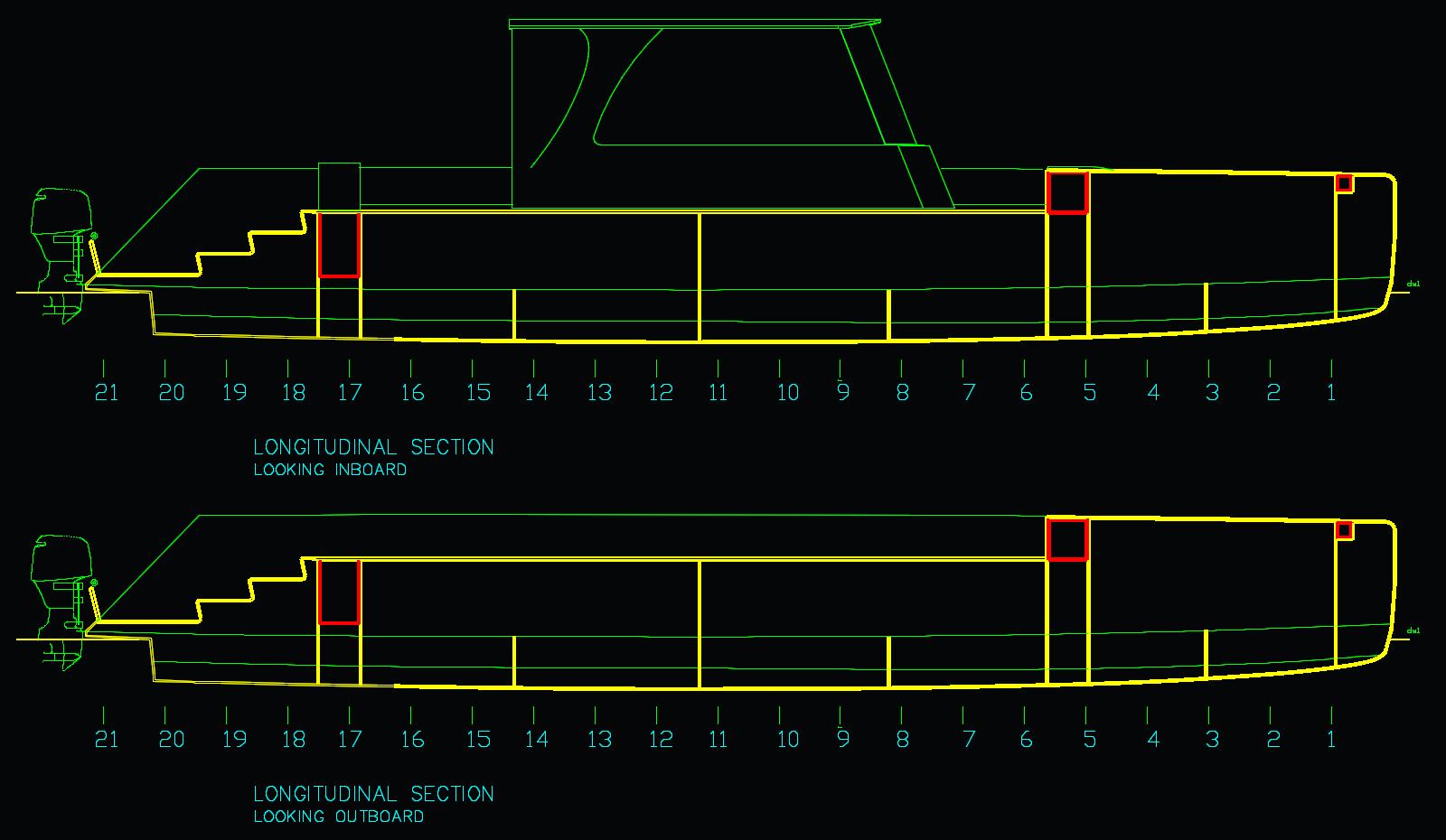

Below see the rapid build strategy. Most of it can be built with a flat bagging table.

Length overall: 42'-2" (12.86 m)
Length at waterline: 41'-7" (12.72 m)
Beam: 18'-6" (5.64 m)
Draft: 1'-11" (0.6 m)
Weight: 8,650 lb (3,923 kg)
Displacement: 14,800 lb (6,713 kg)
Bridgedeck: 2'-5" (0.762 m)




All study plans are now available for email delivery at half the price of paper plans!
