New Designs

31' Trimaran with Sliding Connectives

31' Trimaran in composite, with sliding connectives.
psp501g.gif (183536 bytes)psp502g.gif (113268 bytes)psp505g.gif (195666 bytes)slide.jpg (46361 bytes)slidein4.jpg (64033 bytes)
slide1.jpg (55143 bytes)slide2.jpg (69704 bytes)slidein1.jpg (79431 bytes)slidein3.jpg (51016 bytes)inpsp142.jpg (21695 bytes)inpsp144.jpg (32857 bytes)

Sail2.GIF (96197 bytes)Sail2r.GIF (100565 bytes)WBTOP3.gif (220357 bytes)WBTOPin.GIF (34492 bytes)csa31int.gif (46505 bytes)DTLSEC2.GIF (37113 bytes)

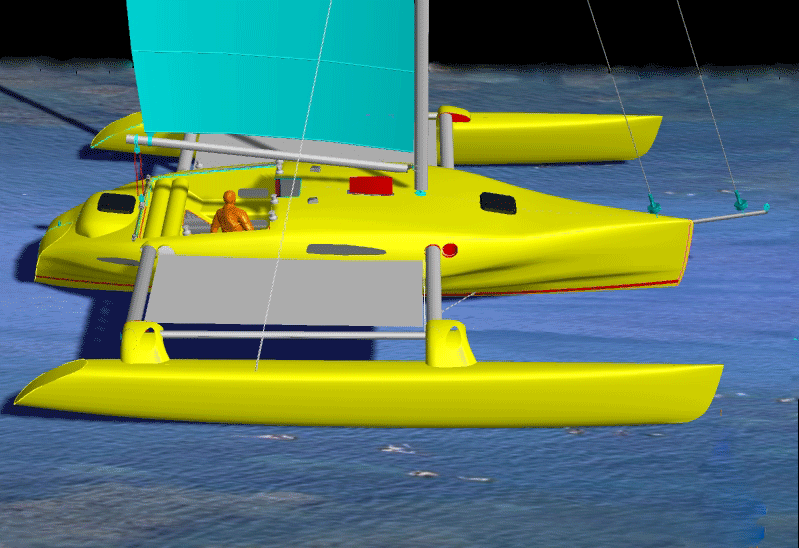

This sliding arm trimaran is based on an earlier work, the CSA31.  It combines the best of Italian interior design with rigorous laminate design.  The sliding tube design draws from the earlier Trikala work.   The alloy tubes slide on teflon cleats to give an "in" beam of 12'-0" (3.66m), excellent for mooring in a marina.  This design has a very innovative interior arrangement with a private head space, and a very large galley.



Length overall: 30'11" (9.44m)
Beam: 26'-6" (8.08 m)
Draft: 1'-4"/7'-10" (0.4/2.4 m)
Weight: 2.250 lb (1.020 kg)
Displacement: 3.950 lb (1.792 kg)
Sail Area m 380 sf (35.3 sq m)
j  122 sf (11.33 sq m)
s  670 sf (62.3 sq m)
upwind 502 sf (47.6 sq m)

Buy:

Email Study Plans:  $50
Study plans:  $100
Full plans:  $3000

All study plans are now available for email delivery at half the price of paper plans!
