Charter Catamarans

34' Power Charter Catamaran

A 34' daycharter power catamaran built with composite materials.
This 34' power catamaran design is designed to carry 16 passengers on trips from the north shore of Kauai.  The very efficient sailing cat type hulls take very little power and generate little wake.  Top speed is 26 knots.   Construction is foam/glass.   A second vessel operates out of Kona.

See http://napaliseabreezetours.com/

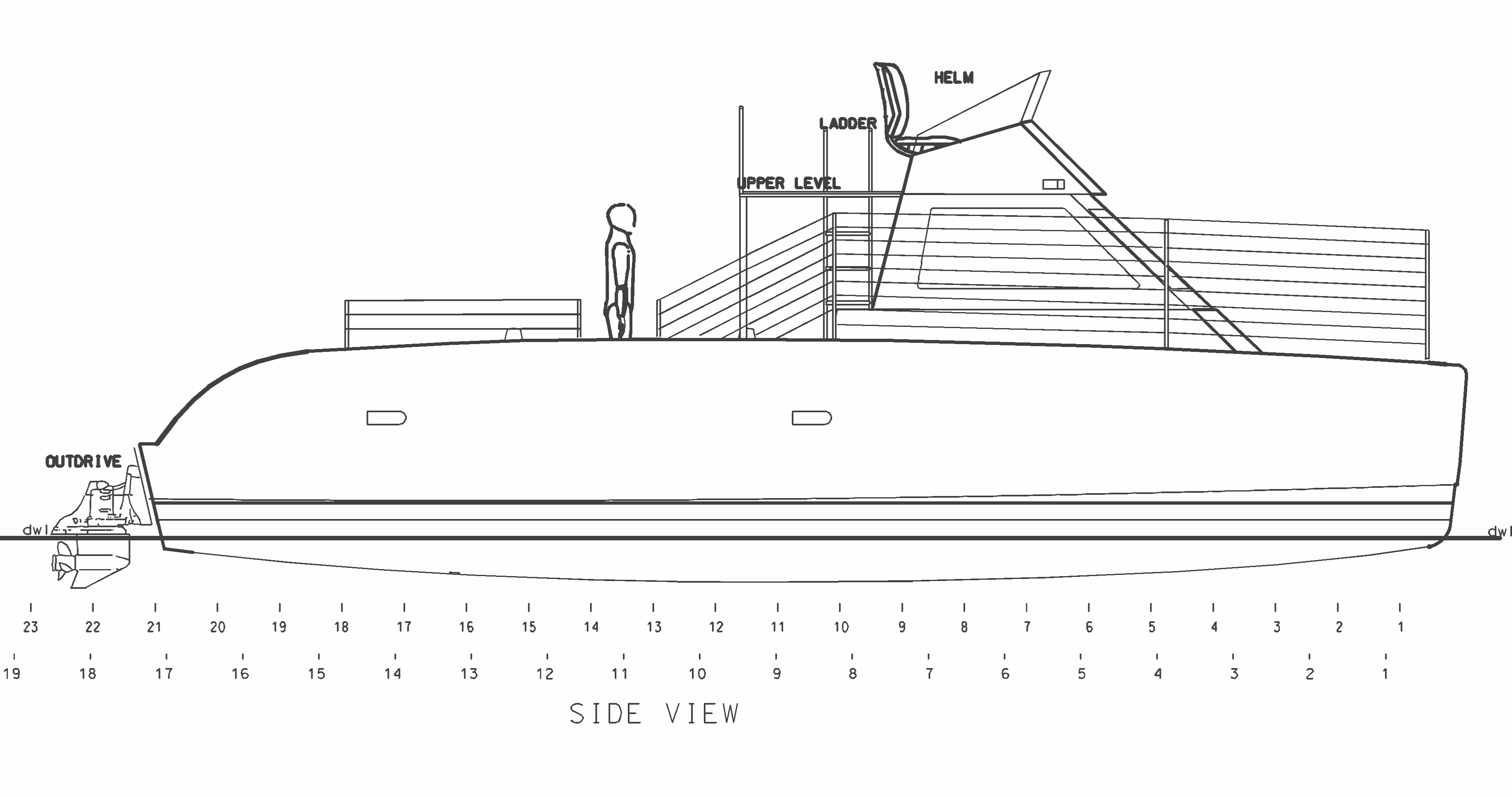

seabreezecu4x61g.gif (74048 bytes)seabreezehonopu4x61g.gif (73169 bytes)34sidegrey.GIF (68772 bytes)34topgrey.GIF (163042 bytes)
Length overall: 34'-4" (10.6 m)
Beam: 12'-0" (3.65 m)
Draft: 1'-2" (0.35 m)
Weight: 6,085 lbs. (2,760 kg)
Displacement: 8,830 lbs. (4,005 kg)
Power: (2) Volvo TAMD 31L

Buy:

Email Study Plans:  $50
Study plans:  $100
Full plans:  $3600

All study plans are now available for email delivery at half the price of paper plans!
