New Designs

56' Catamaran w/Aero Rig

56' Catamaran in composite with Aero Rig
This 56' Catamaran combines unmatched single-handing ease and safety with brisk performance.  Construction is foam/glass sandwich.  The main salon provides complete visibility without the interruption of trusses or other shear webs.  The design has four generous staterooms.  The flared hulls provide more inside volume without the drag of the usual fat hulls found in popular production cats.  A second one is being built in Hawaii. This design is a proven world cruiser. Unit #1 just finished a lap around the Pacific. See more at Aero56.
55aerocataftqtr1.jpg (662023 bytes)55aerocataftqtr3.jpg (463989 bytes)55aerocatSIDE81.JPG (58857 bytes)out26.jpg (777150 bytes)56sailing.gif (119746 bytes)mastbase8g.gif (159514 bytes)

in5.jpg (690388 bytes)in6.jpg (665860 bytes)in7.jpg (746889 bytes)in8.jpg (791427 bytes)in19.jpg (765220 bytes)in22.jpg (692380 bytes)

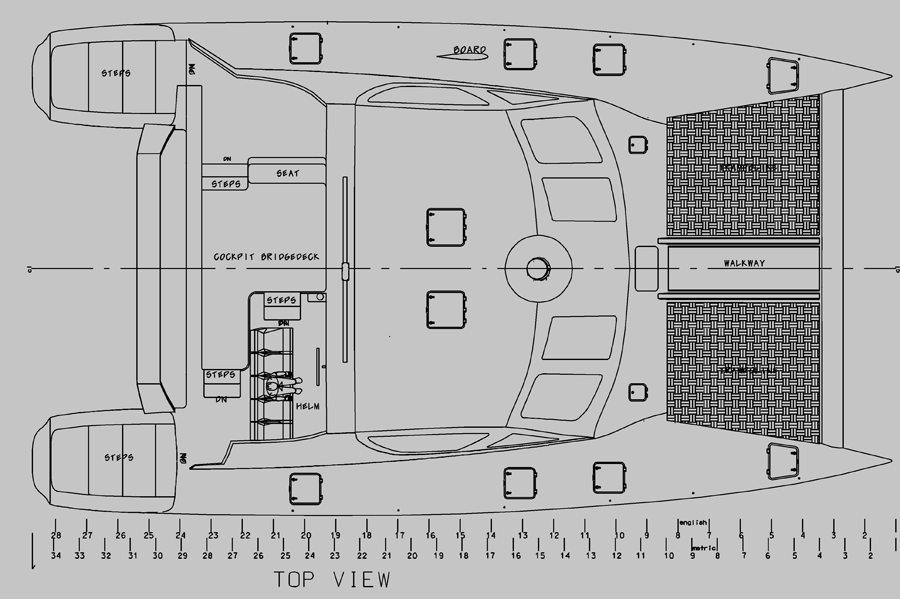

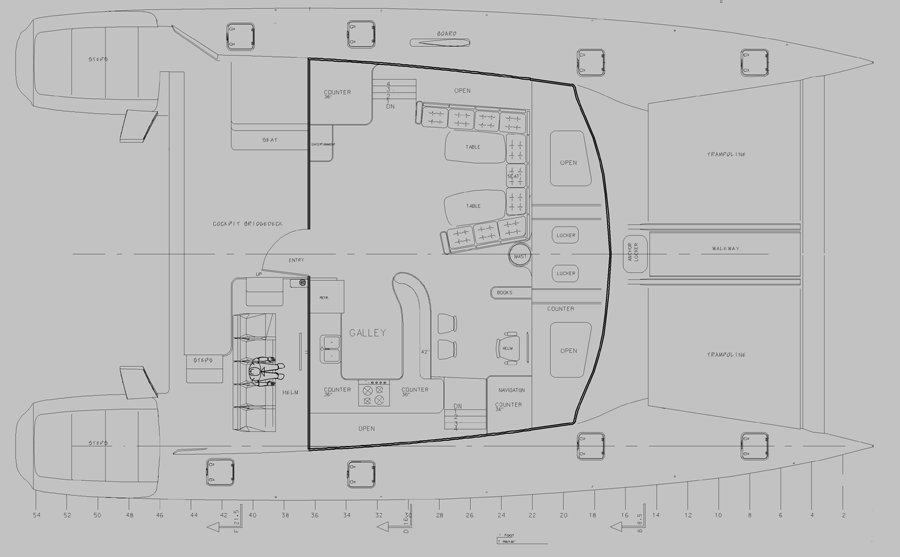

55aerocattop.gif (132697 bytes)55aerocatsalon.gif (71156 bytes)55aerocatinterior.gif (127171 bytes)55aerocatdetail.gif (90767 bytes) 55aerocatclsec.gif (96526 bytes) 55aerocatclsec2.gif (90789 bytes)



Length overall: 56'-4" (17.16 m)
Beam: 31'-8" (9.69 m)
Draft: 2'-0"/10'-0" (.61/3.0 m)
Weight: 22.500 lb (10,206  kg)
Displacement: 29.550 lb (13,390  kg)
Sails-m: 943 sqft. (87.6 sqm.)
jib: 235 sqft. (21.8 sqm.)
total: 1,178 sqft. (109.4 sqm.)

Buy:

Email Study Plans:  $50
Study plans:  $100
Full plans:  $7800

All study plans are now available for email delivery at half the price of paper plans!
