Designs Available Again

58' Catamaran



58' catamaran in composite construction.
This 58' cat is one of the original Sunchaser designs.  The plans are available again.  Plans are available for both cruising and charter versions. This is a catamaran design that can actually sail.  Compare the bridgedeck clearance to its competitors.  The laminate design is still years ahead of the usual designs out there now.

It is USCG certified for 49 passengers.  Molds are available to speed up the construction process.

See www.Aolani.cc

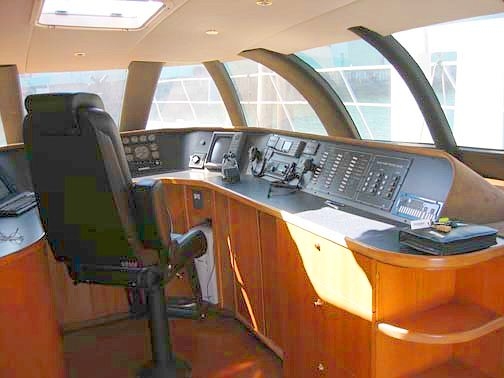

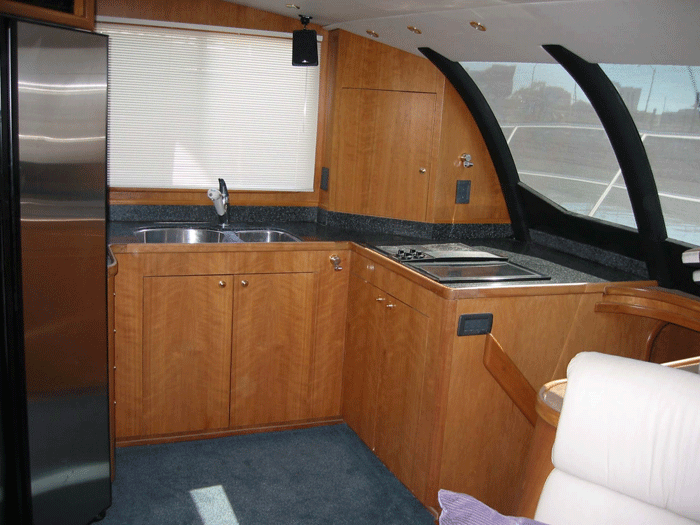

58cat_aft-areag.gif (289023 bytes)58cat_aftg.gif (296734 bytes)58cat_aft-entertainmentg.gif (263632 bytes)58cat_foredeckg.gif (263855 bytes)57cat_2side main helm.jpg (80336 bytes)        57cat_pft side main helm.jpg (73863 bytes)58cat_main-salong.gif (190431 bytes)58cat_aft-cabin2g.gif (269044 bytes)58cat_aft-cabing.gif (323802 bytes)58cat_galleyg.gif (206767 bytes)

57cat_Ent ctr.jpg (72473 bytes) 58DTLSEC3.GIF (26524 bytes)58tchartinterior.GIF (29506 bytes)58cattop.GIF (20855 bytes)58catsail.gif (20812 bytes)



Length overall: 58'-2" (17.73 m)
Length at waterline: 57'-4" (17.47 m)
Beam: 30'-11" (9.42m)
Draft: 2'-0"/8'-6" (0.61/2.59 m)
Weight: 21,550 lb (9,775 kg)
Displacement: 29,780 lb (13,508 kg)
Bridgedeck: 3'-1" (0.94 m)
Sails-m: 1,052 sqft. (97.7 sqm.)
jib: 380 sqft. (35.3 sqm.)
spinn: 1510 sqft. (140.3 sqm.)
Power: Yanmar 4L-DTE series

Buy:

Email Study Plans:  $50
Study plans:  $100
Full plans:
$9000

All study plans are now available for email delivery at half the price of paper plans!
