Charter Multihulls

65' Day Charter Motorsail Cat

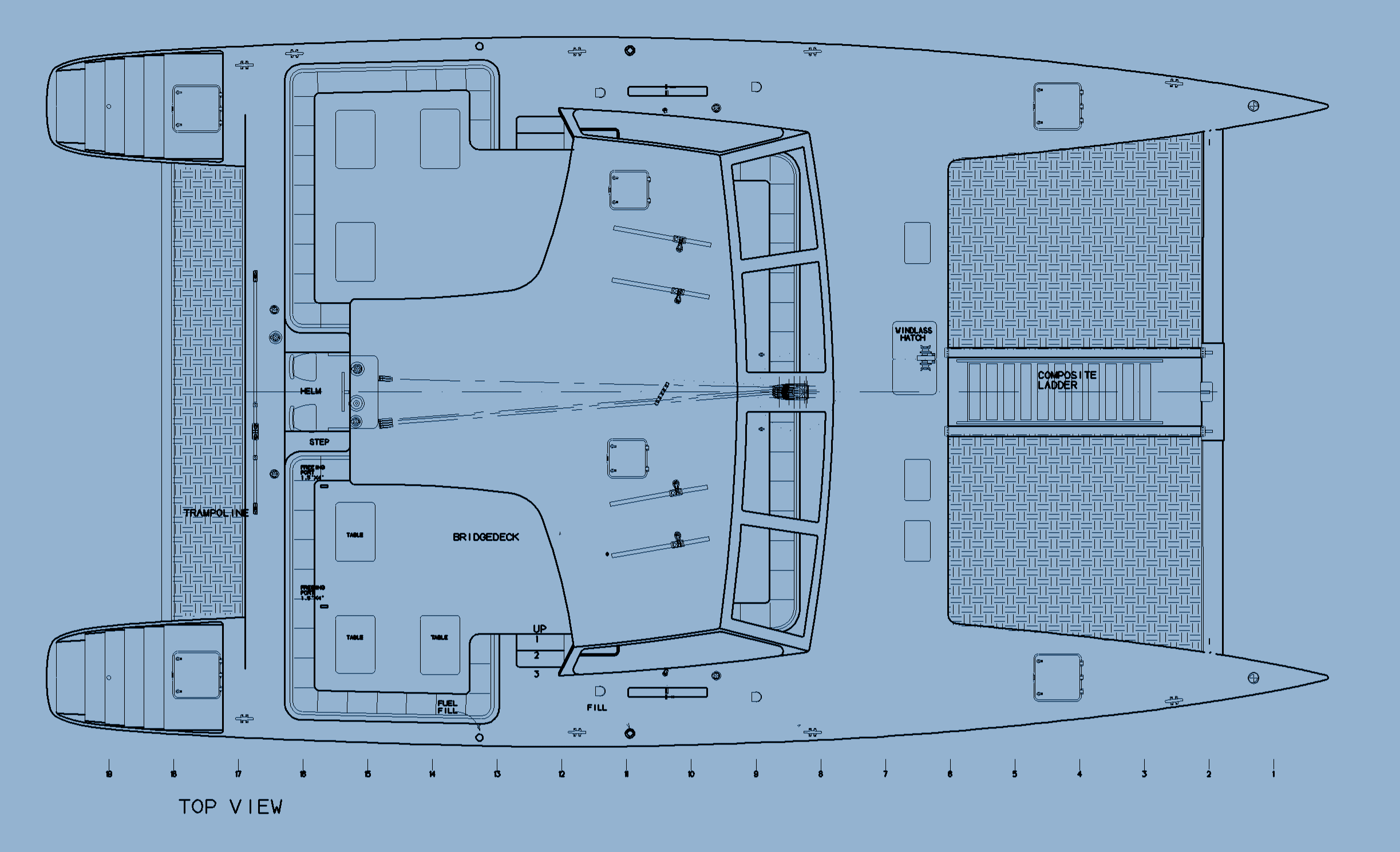

65' daycharter catamaran motorsailer in composite.
This 65' daycharter catamaran motorsailer design was also the result of the week long work session with the legendary Capt. Andy of Kauai.  It had all the features that he specifically needed, based on his years of experience.  It was to be built in composite. It was to be certified for 118-passengers.  A composite builder could not be found at the time and it was not built.
Length overall: 65'-0" (19.81 m)
Beam: 36'-0" (10.97m)
Draft: 2'-3"/8'-6" (0.69/2.6m)
Weight: 25,250 lb (11,453 kg)
Displacement: 38,800 lb (17,599 kg)
Bridgedeck: 4'-2" (1.27 m)
Sails-m: 1,134 sqft. (105.35 sqm.)
jib: 437 sqft. (40.6 sqm.)
total: 1,571 sqft. (146 sqm.)
Power: (2) 350 hp.

Buy:

Email Study Plans:  $50
Study plans:  $100
Full plans:  $9800

All study plans are now available for email delivery at half the price of paper plans!
