Designs Available Again

48'  Performance Catamaran

A 48' high performance catamaran in composite construction.
This 48' catamaran was being built in Tunisia by MCTEC.  It was sold in both daycharter and performance cruising versions.  MCTEC has gone quiet so I am offering the plans for sale at this time.  This design will be very competitive with the heavily marketed Gunboat, for example, but at a better price.

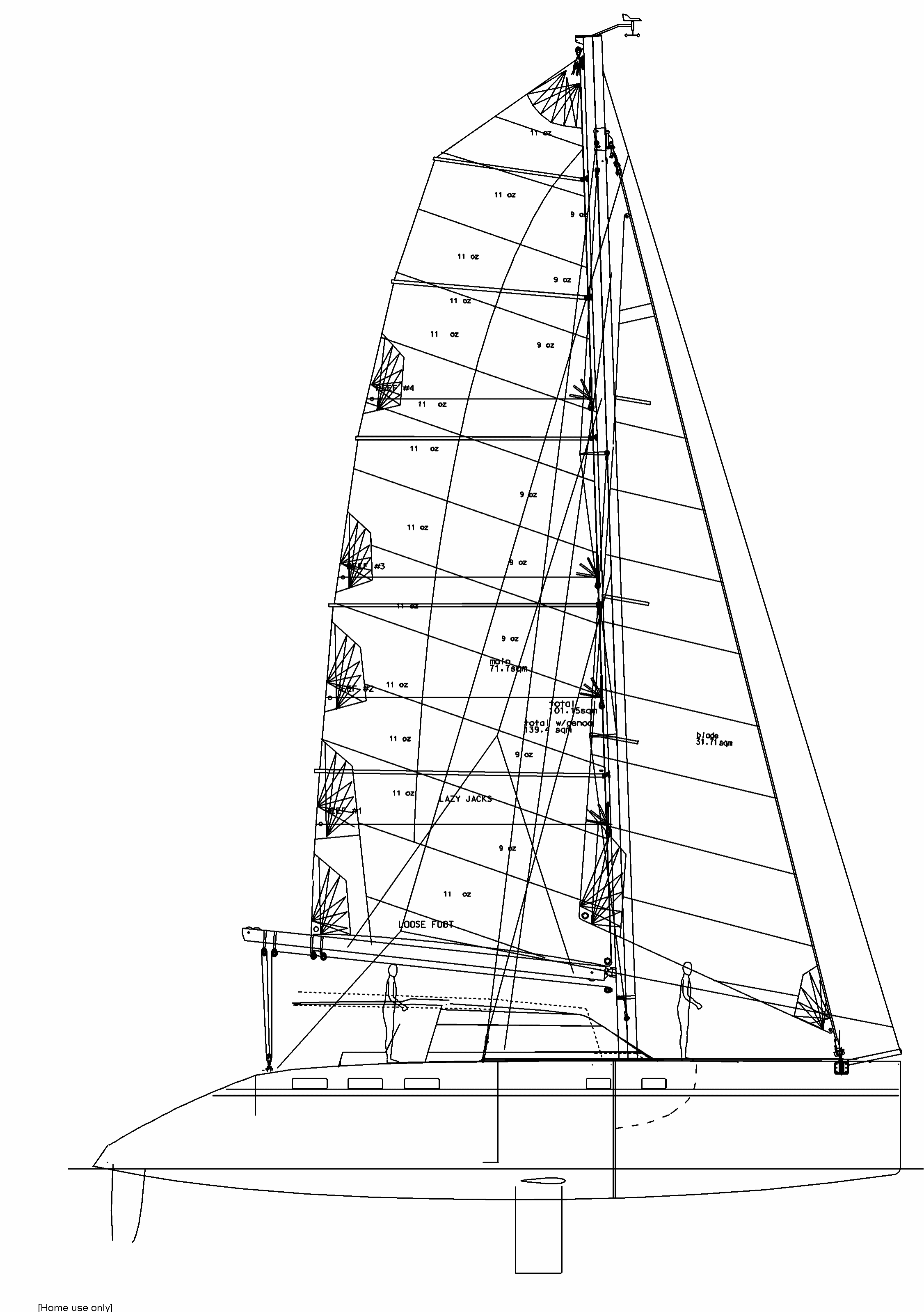

out48sail.GIF (139633 bytes)out48psp3.gif (23308 bytes)out48psp5.gif (22062 bytes)out48psp6.gif (25886 bytes)

out48int1.JPG (320179 bytes)out48int2.JPG (305402 bytes)out48int3.JPG (313804 bytes)out48int4.JPG (241110 bytes)out48int5.JPG (258914 bytes)out48int6.JPG (261829 bytes)

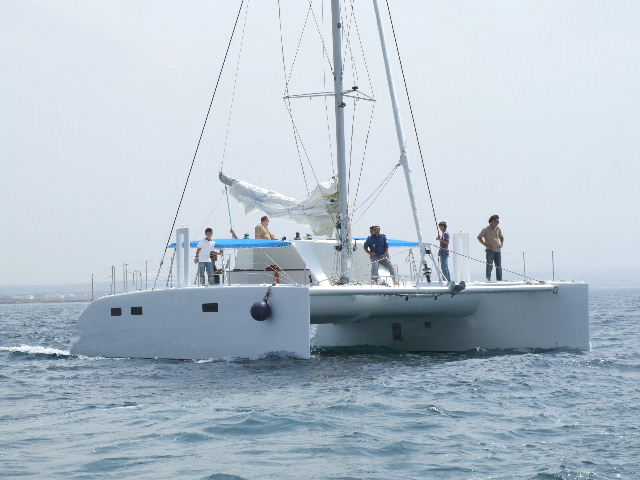

out48mold.jpg (446023 bytes)out48aft1.JPG (41709 bytes)out48aft2.JPG (39297 bytes)out48launch1.jpg (225311 bytes)out48launch3.jpg (56032 bytes)out48launch4.jpg (61147 bytes)



Length overall: 48'-6" (14.17m)
Length at waterline: 48'-0" (14.0m)
Beam: 28'-4" (8.53m)
Draft: 1'-10"/7'-9" (0.57/2.2m)
Weight: 12,860 lb ("5,375 kg)
Displacement: 23,500 lb ("7,484 kg)
Bridgedeck: 3'-3" (1.04 m)
Sails-main: 772 sqft. (71.7 sqm.)
jib: 342 sqft. (31.71 sqm.)
genoa: 729 sqft. (67.7 sqm.)
total w/jib: 1089 sqft. (101.15 sqm.)
total w/genoa: 1,500 sqft. (139.4 sqm.)

Buy:

Email Study Plans:  $50
Study plans:  $100
Full plans:  $7200

All study plans are now available for email delivery at half the price of paper plans!
