Rapid-Construction Multihulls

43' Cruising Trimaran

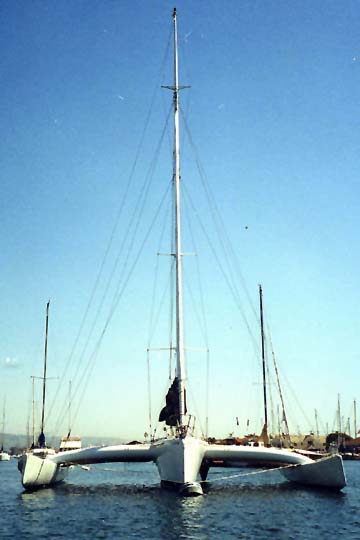

43' developed-plywood cruising trimaran.
This 43'  cruising trimaran is an expansion of the 40' trimaran in the video and in the economy section.  By adding a few inches here and there inside, some nice synergistic things happen where the interior spaces become far better.

This design also is wildly fast and easy to handle.  It has  wide overall beam, light weight, and way big amas.  The nets provide mass storage.

It is built with the rapid CM construction.  This is about the least work needed to get a 43' waterline.

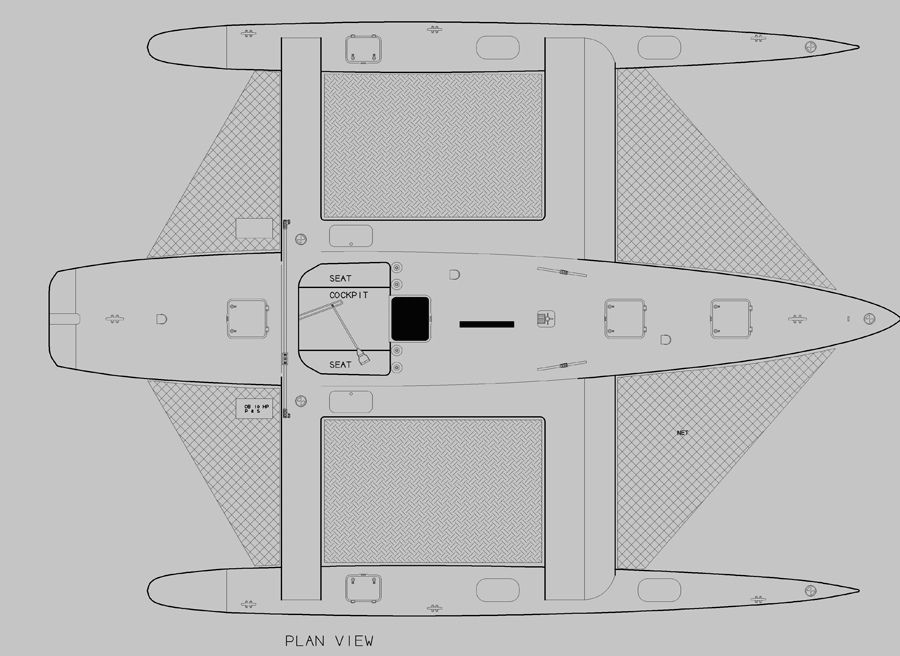

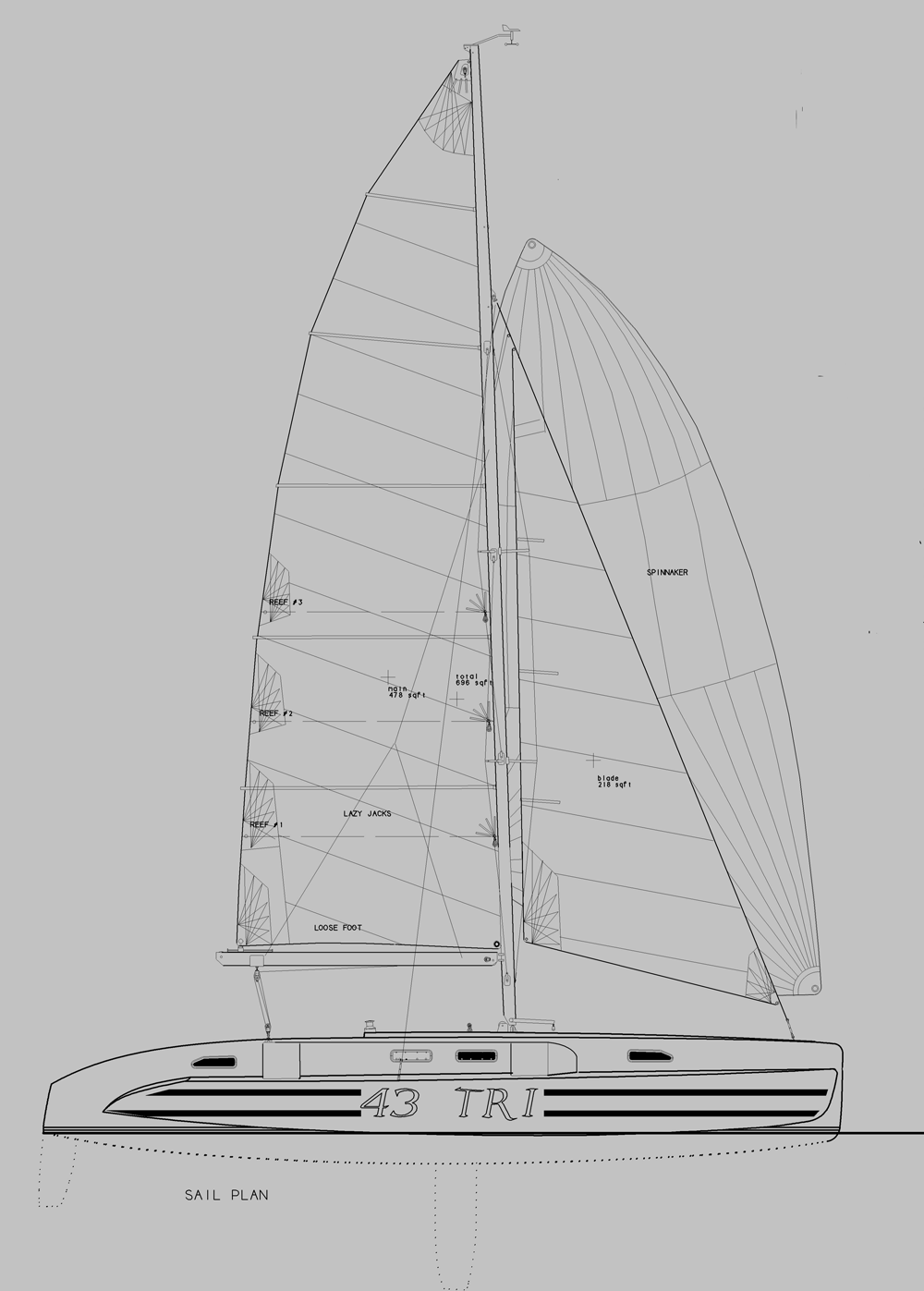

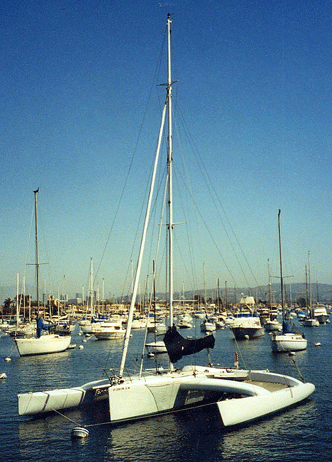

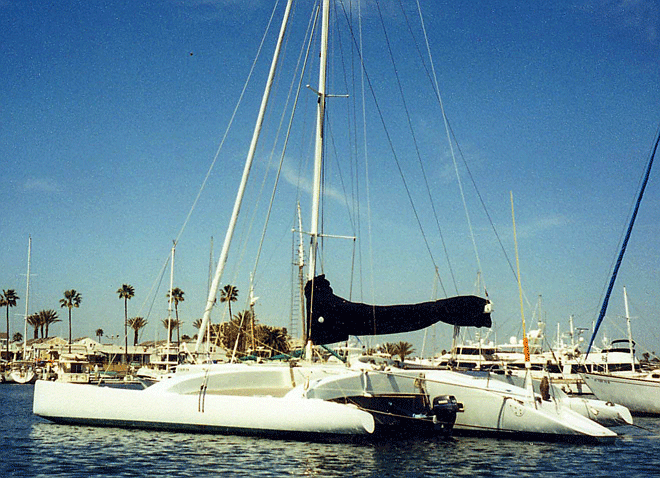

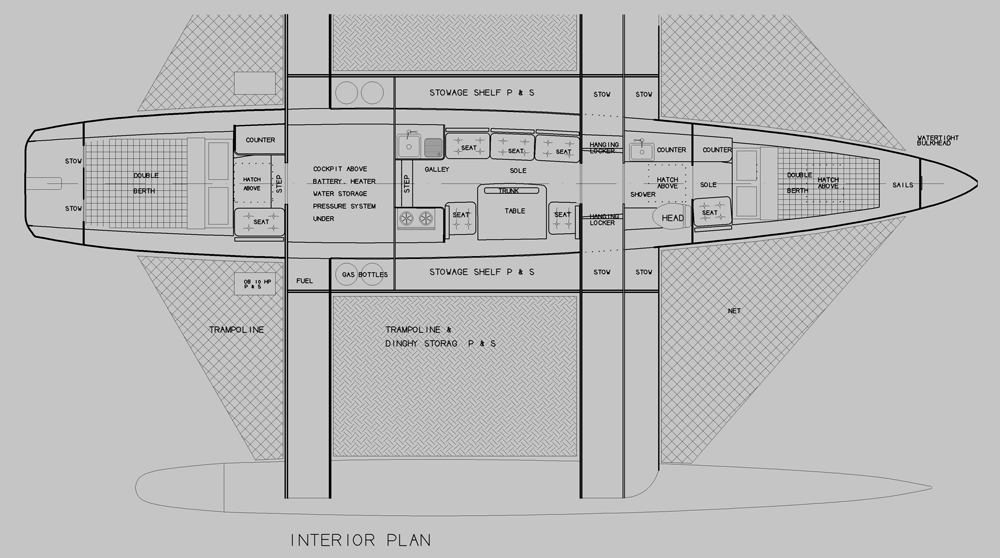

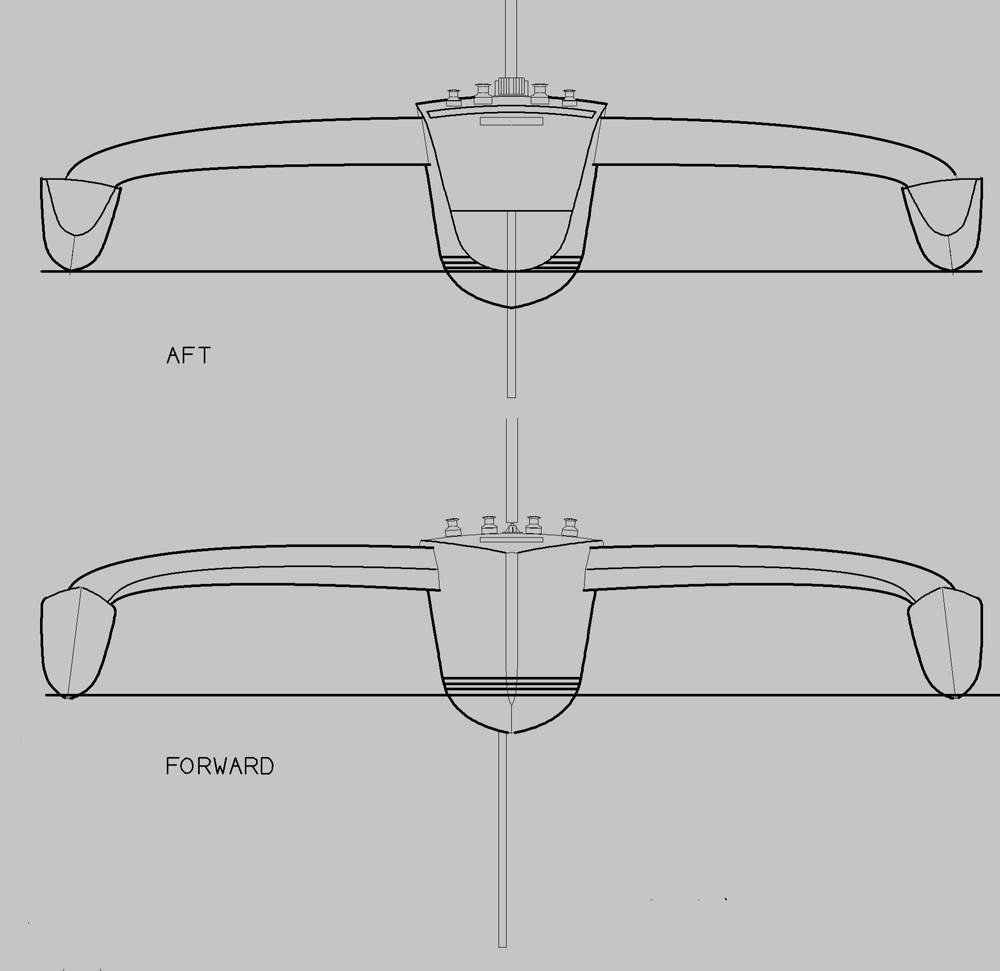

43tri-2g.gif (94555 bytes)43tri_4g.gif (202485 bytes)43triSAILg.gif (147181 bytes)43tritopg.gif (175530 bytes)43triintg.gif (176344 bytes)43triforeg.gif (56504 bytes)
Length overall: 43'-1" (13.1 m)
Beam: 30'-2" (9.2 m)
Draft: 1'-8"/8'-5" (0.5/2.58 m)
Weight: 4600 lb (2093 kg)
Displacement: 8935 lb (4065 kg)
Sails-Main: 478 sqft. (44.4 sqm.)
Blade: 218 sqft. (20.25 sqm.)
Spinnaker: 725 sqft. (67.35 sqm.)

Buy:

Study plans:  $100
Email Study Plans:  $50
Full plans:
$3400

All study plans are now available for email delivery at half the price of paper plans!
