Power Multihulls

85' Term Charter Catamaran

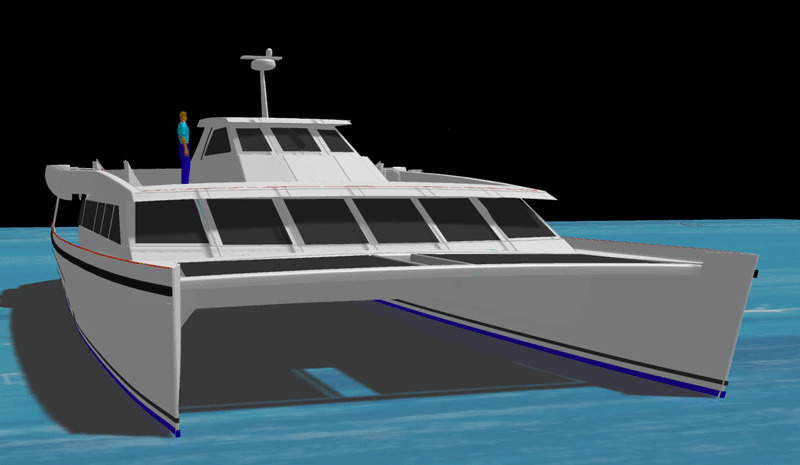

85' power catamaran in composite construction.

This 85' power catamaran was developed for a group in Mexico and another group in Ecuador. The idea was to take the robust basic configuration of an efficient charter cat and give it 8 luxurious staterooms. The captain's quarters are on the upper level. The upper level also allows a vast area to sun and lounge.

Unlike the common metal catamarans, this composite design is already insulated and quiet. The very efficient displacement hulls give a top speed of over 32 knots, but still give an unequalled smooth ride in rough water. The rigorous laminate design allows the draft of only 1.01m including the wheels. Like the other power catamarans in this lineup, it will have exceptional fuel economy.

Also see displacement powercats.

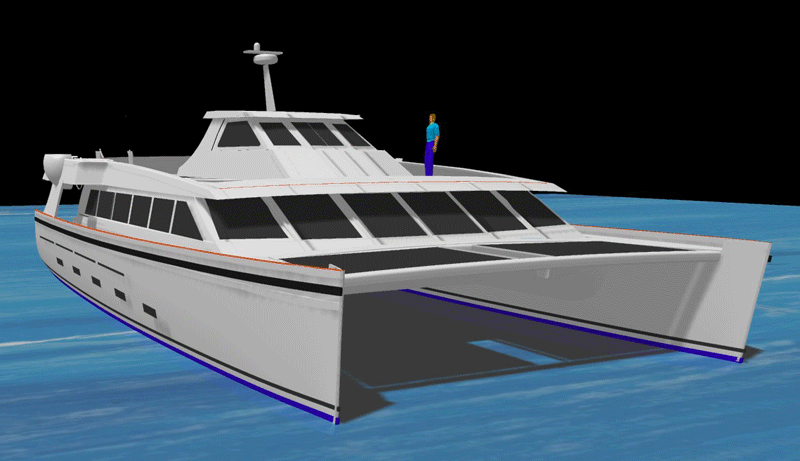

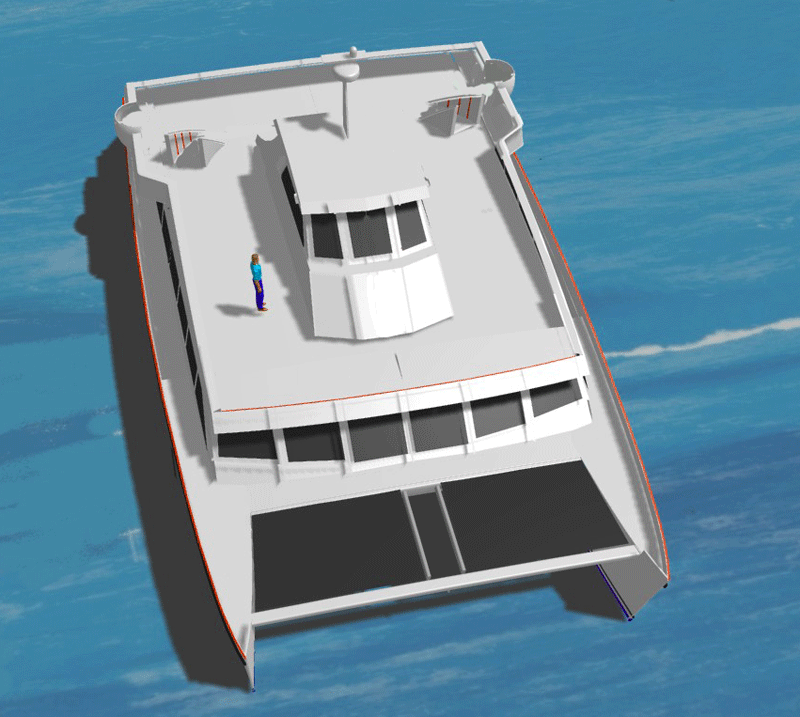

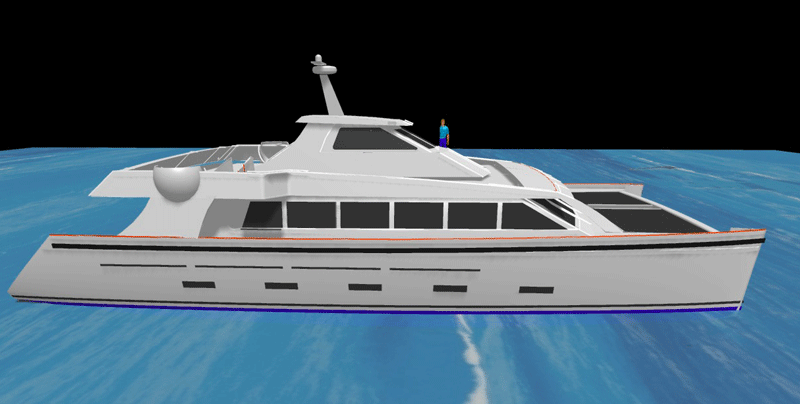

 pwrcatm14_bg.gif (102304 bytes)pwrcatm14_cg.gif (91677 bytes)85pwrcatm14_dg.gif (76979 bytes)85pwrcatm14_eg.gif (228184 bytes)

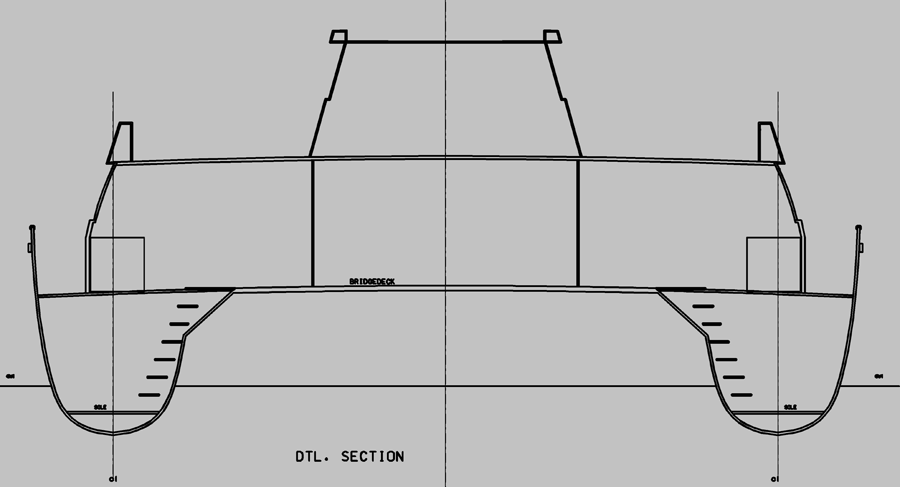

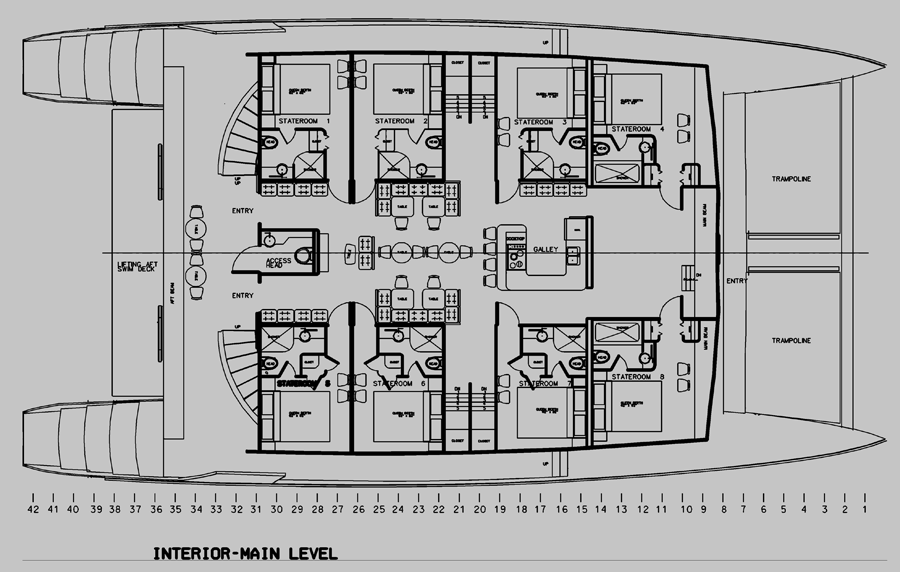

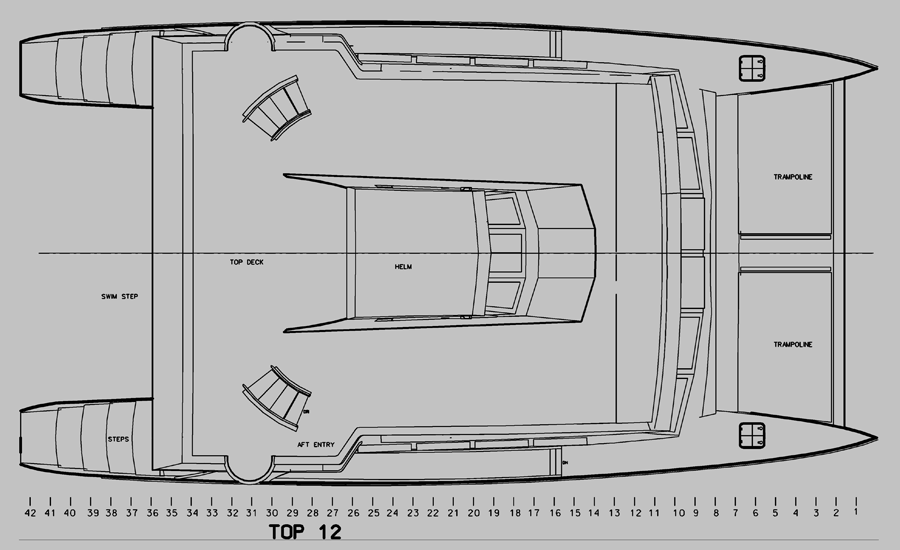

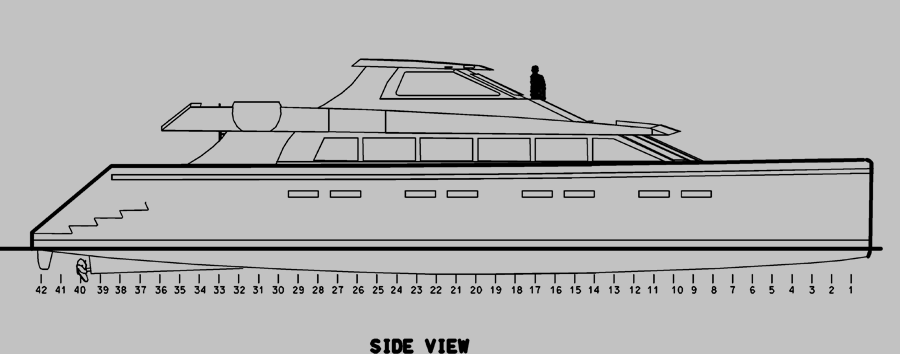

85pwrcatside.gif (24691 bytes)85pwrcattop.gif (88942 bytes)85pwrcatint.gif (130048 bytes)85pwrcatdtlsec.gif (32442 bytes)

Length overall: 84'-11" (25.91 m)
Beam: 42'-0" (12.8 m)
Draft: 3'-4" (1.01 m)
Weight: 59,140 lb (26,825 kg)
Displacement: 91,196 lb (41,366 kg)
Power: Man 12V-1360 hp





Buy:

Study plans:  $100
Email Study Plans:  $50
Bid sets:  $500
Full price:  Please call

All study plans are now available for email delivery at half the price of paper plans!
