Daysailer Multihulls

16' Trimaran

A two-person, developed-plywood trimaran.

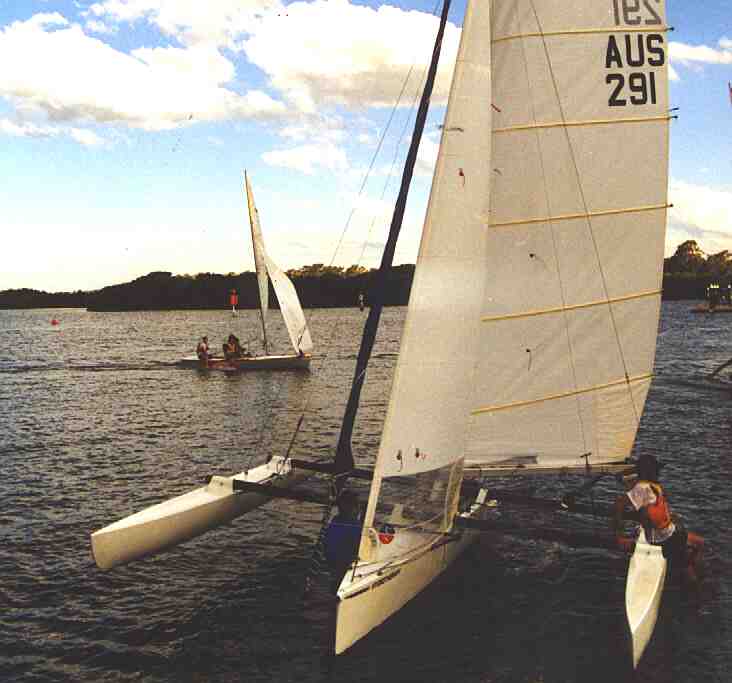

This two-person, developed-plywood trimaran has proven to be quite speedy both to built and under sail.  Again, beach cat rigs and sails can be used to get it going quickly and at low cost if you look around a bit.  Its wide overall, with skinny hulls, bit amas and light weight.  It goes.

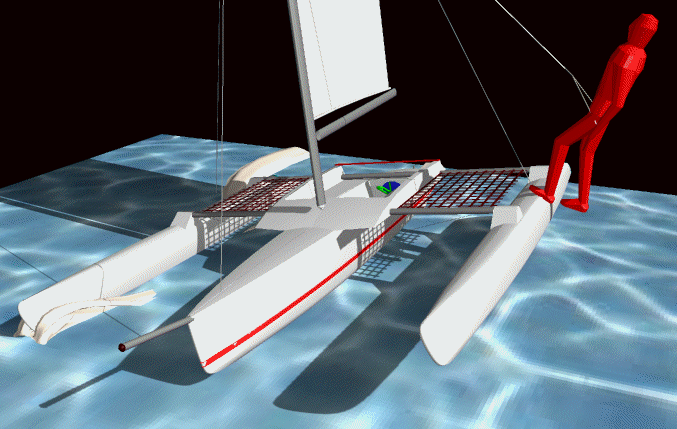

As you see below, it was first designed in 3D then the working drawings flowed off of that model.
These folks used the amas alone as a rowing cat while the main hull stayed home.

Finally, Gizmo.  In the lower right, Peter Walford's now legendary Gizmo.  It is a highly and continuously modified KHSD 15 tri that was an earlier model of this 16'.




Length overall: 15' 9" (4.8 m)
Length at waterline: 15' 6" (4.72 m)
Beam: 13' 0" (3.96 m)
Draft: 8"/3' 1" (.2/.94 m)
Weight: 390 lb (177 kg)
Sails: main: 122 sqft. (11.56 sqm)
jib: 33.5 sqft. (3 sqm)
spinnaker: 145 sqft. (13.5 sqm)
upwind total: 155.5 sqft. (14.45 sqm)

Buy:

Email study plans:  $50
Study plans:  $100
Full plans:  $480

All study plans are now available for email delivery at half the price of paper plans!
